Blocked IPs

Vodia Monitor 10

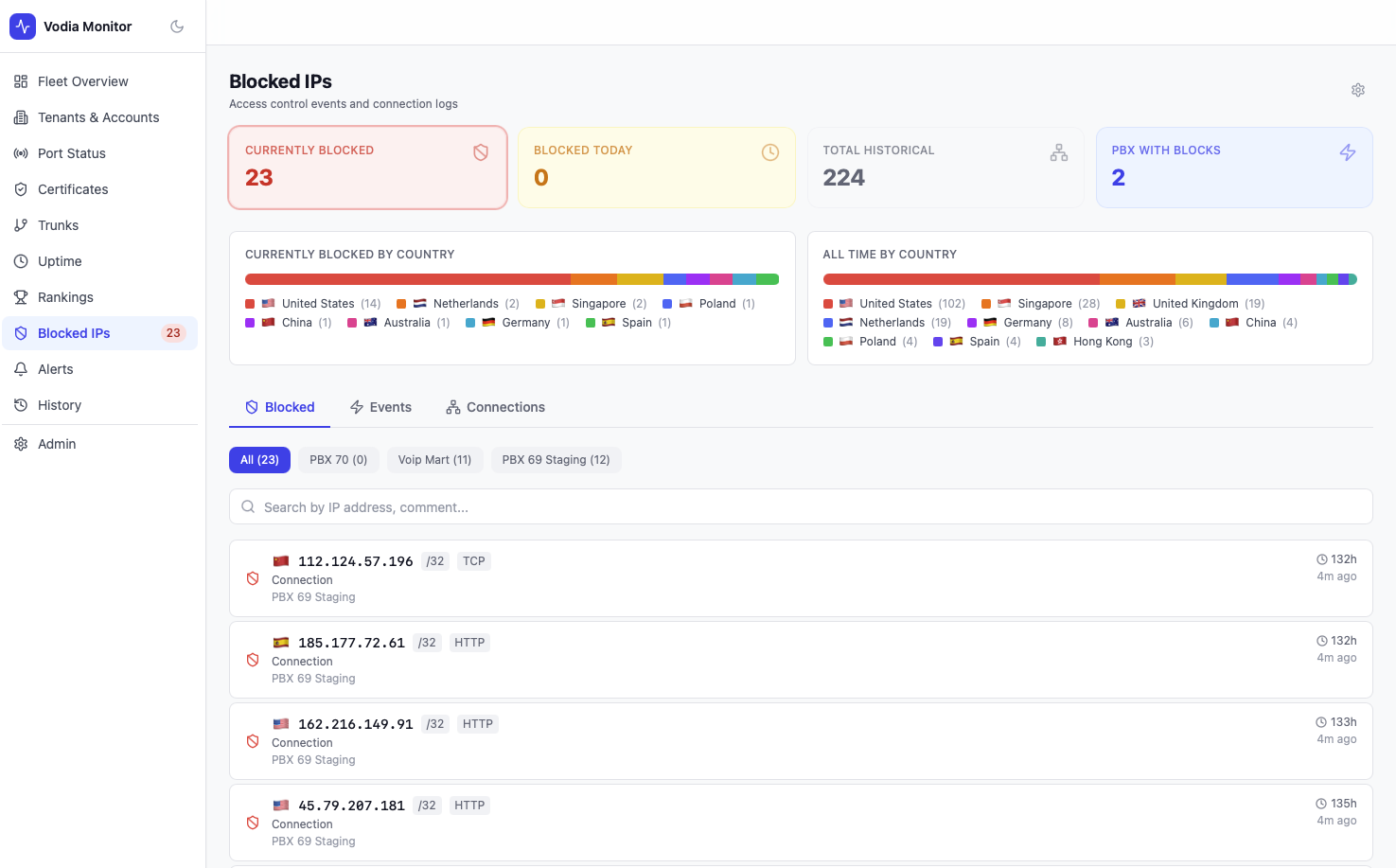

The Blocked IPs page surfaces access control data from your PBX servers — showing currently blocked IP addresses, connection events, and historical totals with country attribution.

Summary Cards​

MetricDescription
Currently BlockedIP addresses on the active blocklist right now
Blocked TodayIPs added to the blocklist in the last 24 hours
Total HistoricalAll-time unique blocked IPs across the fleet
PBX With BlocksNumber of PBX servers with at least one active block

Country Breakdown​

Two country tables are shown:

  • Currently Blocked by Country — country distribution of active blocks
  • All Time by Country — country distribution of historical blocks

Each entry shows the country flag, name, and count.

Tabs​

Blocked​

The default tab shows all currently blocked IPs. Filter by PBX server using the sub-tabs. Each entry shows:

  • Country flag and IP address with CIDR notation
  • Block reason (e.g. HTTP)
  • Event type (Connection)
  • PBX server
  • How long ago the block was recorded
  • Time since last seen

Events​

The Events tab shows access control events pulled from the PBX blocklist event log — useful for understanding what triggered a block.

Connections​

The Connections tab shows recent connection attempts logged by the PBX, including both blocked and suspicious connections.

Data Source​

Blocked IP data is fetched from each PBX via /rest/system/access?type=blocklist (blocked list) and /rest/system/access?type=connections (connection log). Data refreshes on each poll cycle.
