Add your own Custom SMS Provider!

This guide explains how to set up a custom SMS provider using Vodia's HTTP GET implementation. This allows you to integrate any HTTP-based SMS gateway with your Vodia PBX system using simple GET requests with parameter substitution.

Available Placeholders

Placeholder	Description	Example
{password}	SMS provider password/API key	abc123xyz
{body}	Message content	Hello World
{url}	Media/image URL	https://example.com/image.jpg
{from}	Sender number (global format)	+1234567890
{to}	Recipient number (global format)	+0987654321
{from-e164}	Sender number (E164 format)	1234567890
{to-e164}	Recipient number (E164 format)	0987654321
{param1}	Custom parameter 1	(tenant-specific)
{param2}	Custom parameter 2	(tenant-specific)
{param3}	Custom parameter 3	(tenant-specific)
{address}	Tenant DNS address	tenant.vodia.com

Vodia configuration

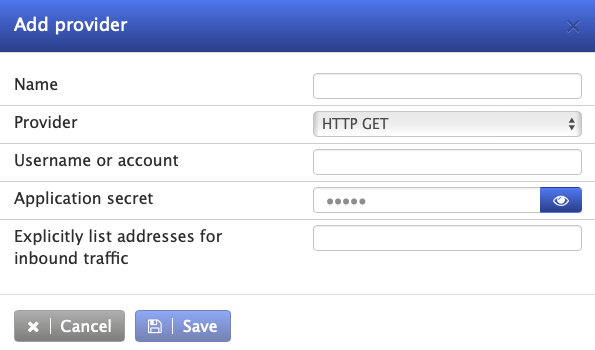

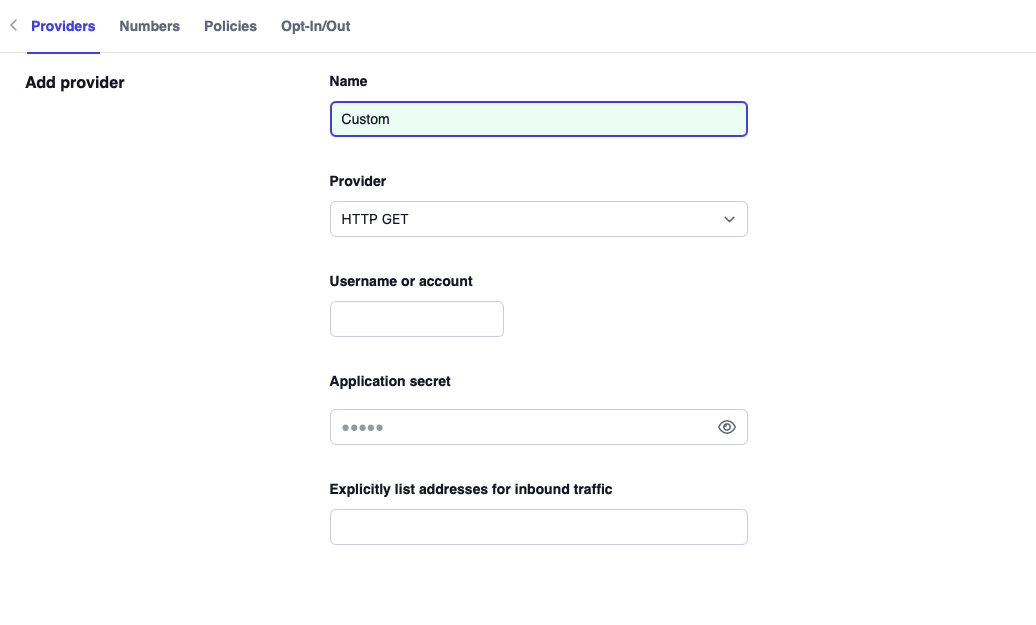

• Log into your Vodia tenant administration
• Navigate to Trunks → SMS Management -> Providers
• Click Add
• Select HTTP GET provider type

Version 69

Version 70

• Fill in the following fields:
  • Username: Your complete SMS gateway URL template (see URL Example Formats below)
  • Password: Your SMS provider's API key or password
  • Account Name: Descriptive name for this SMS provider

Example URL Templates

tip

Each SMS provider has its own HTTP GET format, so you'll need to modify the examples below to match their specific requirements.

Basic SMS Provider:

https:/sms.example.com/send/?apikey={password}&numbers={to-e164}&message={body}&sender={from-e164}

Custom Provider with Additional Parameters:

https://sms.example.com/api/send?key={password}&from={from}&to={to}&text={body}&custom1={param1}&domain={address}

Incoming SMS (Vodia Configuration)

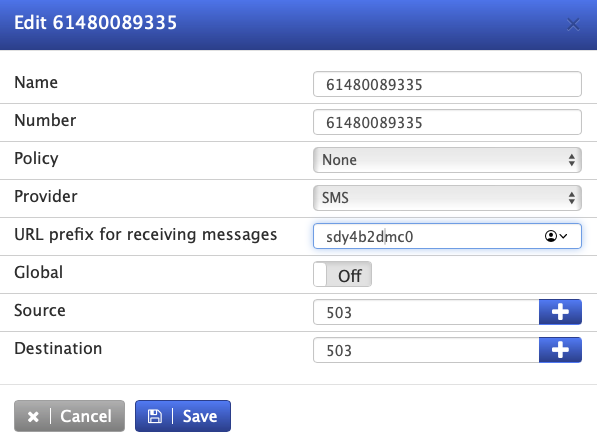

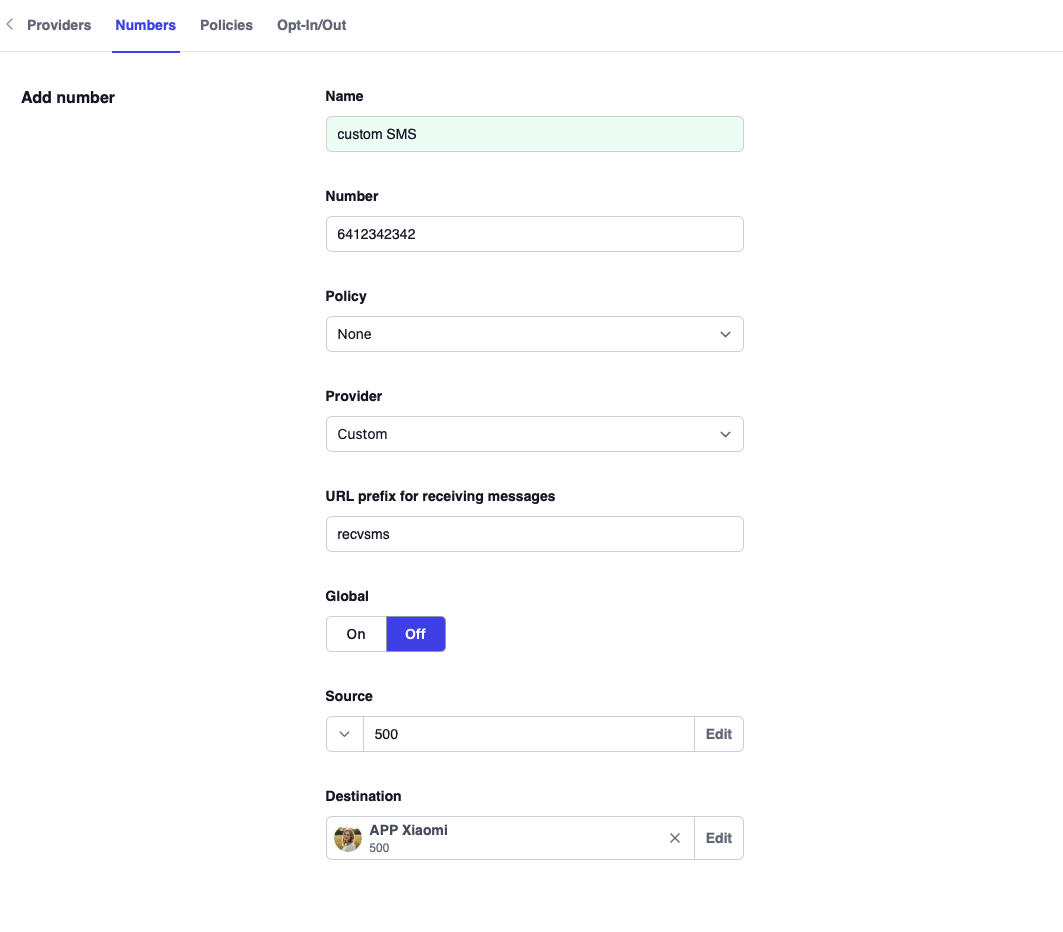

• Navigate to Trunks → SMS Management -> Numbers
• Click Add

Version 69

Version 70

• Name: Descriptive name for this number
• Number: Set the mobile numbe
• Policy: Set a policy if you have created one
• Provider: Select your Custom Provider
• URL prefix for receiving messages: Set a unique prefix that your Custom SMS provider will use when sending an incoming SMS to the PBX.
• Source: Extension that will send SMS using this number
• Destination: Extension that will receive SMS at this number

Incoming SMS (Custom Provider Configuration)

• Configure your SMS provider to send incoming messages to: https://tenant.your-vodia-pbx.com/recvsms ( recvsms is the URL prefix for receiving messages value that was set when adding numbers)

  • Example Formats for incoming messages (PBX will need a to , from and text parameter to receive SMSs)

    https://your-vodia-pbx.com/recvsms?to=1234567890&from=0987654321&text=Hello
• Media Messages
  • For image/media messages, use the url parameter:

  • https://your-vodia-pbx.com/recvsms?to=1234567890&from=0987654321&url=https://example.com/image.jpg

tip

To troubleshoot SMS issues, set Log webclient events to level 9 for outgoing SMS, and Log webserver events to level 9 for incoming SMS.
